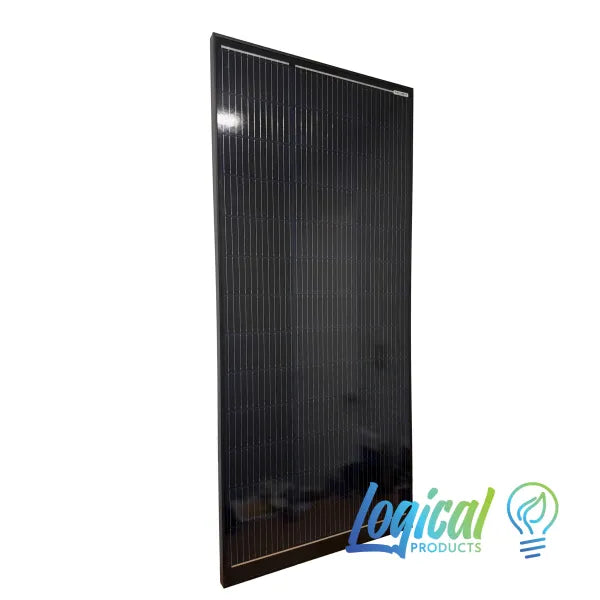

SuperNova 200W Mono solar panel

200W Mono Solar Panel SuperNova 12V High Efficiency Module

Looking for a reliable 200W solar panel in NZ for caravans, campervans, boats, sheds, or off-grid systems? The SuperNova 200W Mono Solar Panel delivers dependable 12V performance, rugged construction, and excellent low-light output — ideal for New Zealand conditions.

Designed as a nominal 12V DC module, this panel is perfectly suited for battery charging systems using MPPT or PWM solar controllers.

 Perfect for 12V Off-Grid Systems

With a Vmp of 20.3V and Imp of 9.90A, this panel is optimised for charging:

• 12V lithium (LiFePO4) batteries

• 12V AGM & deep cycle batteries

• Campervan and caravan systems

• Small cabin & shed installations

 Strong, Consistent Output

• 200W Peak Power (Pmax)

• ±3% power tolerance

• Stable temperature performance

• Excellent low-light generation for cloudy NZ days

 Built Tough for NZ Conditions

Constructed with durability in mind:

• Heavy-duty anodised aluminium frame

• High-transparency low-iron tempered glass

• Rugged design to withstand wind pressure, hail, and snow loads

• Operating temperature range from -40°C to +85°C

Perfect for coastal installs, rural properties, and mobile setups.

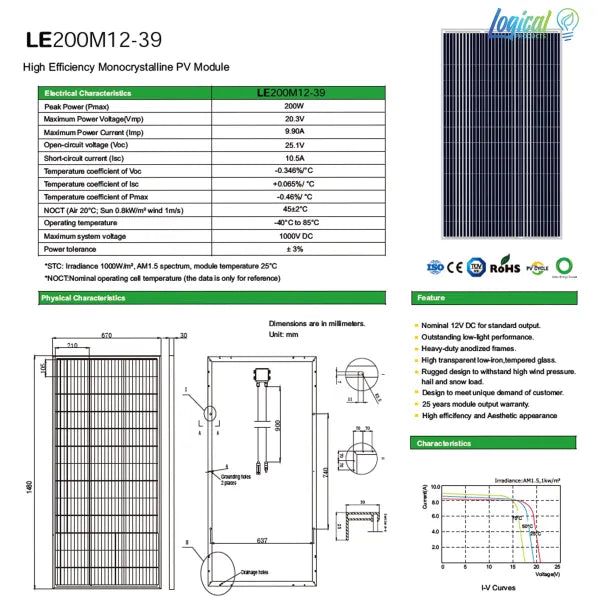

Electrical Specifications – 200W 12V Solar Panel

• Peak Power (Pmax): 200W

• Maximum Power Voltage (Vmp): 20.3V

• Maximum Power Current (Imp): 9.90A

• Open Circuit Voltage (Voc): 25.1V

• Short Circuit Current (Isc): 10.5A

• Maximum System Voltage: 1000V DC

• Power Tolerance: ±3%

This makes it an ideal pairing with:

• 20A or 30A MPPT solar charge controllers

• 12V dual battery systems

• Portable solar kits

Physical Specifications

• Dimensions: 1480 × 670 × 30mm

• Weight: 9.0kg

• Cell Type: Monocrystalline silicon

• Cell Configuration: 39 cells (3×13 layout)

Lightweight enough for roof racks and mobile installations, yet robust enough for permanent mounting.
