POLYFORM F-SERIES Bouys/fenders

SKU: F1

$48.52
$48.52
Tax included.
  • Boats
  • Bouys
  • Deck hardware
  • Docking
  • Fenders
  • On Deck

F-series

Heavy duty fenders

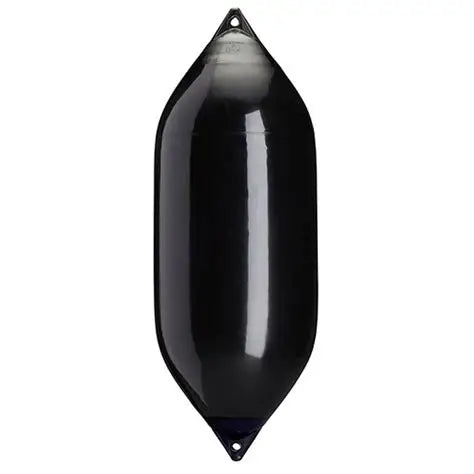

The Polyform F-series cylindrical fenders have set the standard for heavy duty fenders for over 60 years. Polyform's unique, in-house developed and patented POLYMATIQ® technology ensures supreme control over the fusion process and warrants for the most consistent quality available.

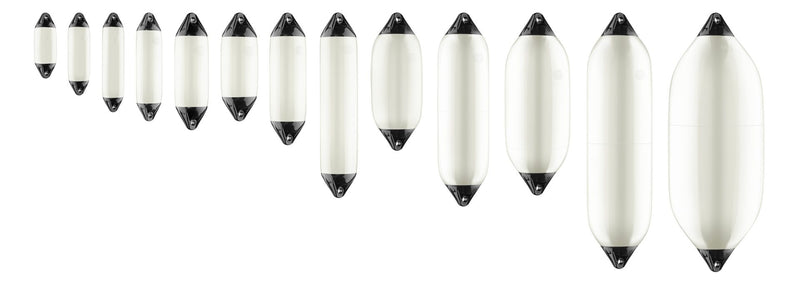

F-series cylindrical fenders are offered in 12 different sizes to fit vessels ranging from the smallest dinghy up to commercial ships and Navy vessels.

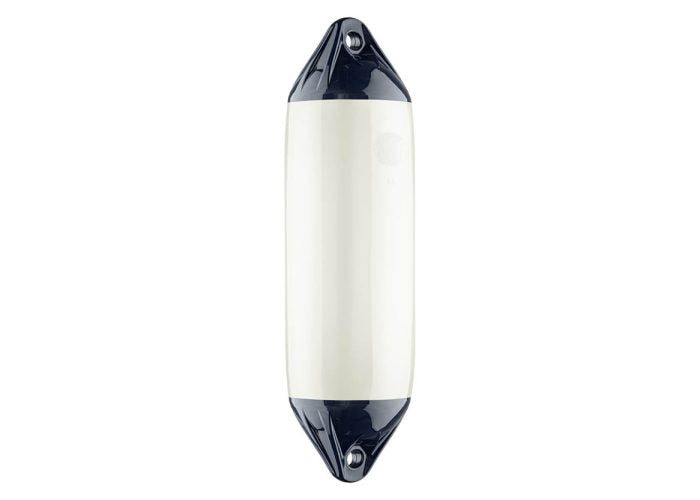

The POLYFORM F-series boat fenders are synonymous with quality, easily identified by their iconic blue, rib-reinforced rope holds.

Key features:
  • Extra flexible body material for superior shock absorption.
  • Sturdy, uniform wall thickness ensures no splits, cracks or weak points.
  • UV resistant and cold flex plastic suitable for all climates and conditions.
  • Ribbed and reinforced, high-pressure injection molded solid rope hold for exceptional strength and for added durability.
  • All plastic valves integrated through friction welding  - no glue and no corrosion
  • Halv a turn screw, integrated non-return flap, and unique adapter tool for easy inflation and air pressure adjustment.
  • Perfectly seamless construction and smooth surface and glossy finish for a premium appearance.





The fenders are tested for strength and flexibility in temperatures ranging from -30oC to +50oC, and feature high abrasive resistance and high energy absorption (up to 3.8 ton meter for F-13) making them suitable for ships of up to 1500 ton d/w (F-13).

Art.no Volume Length
 		Diameter Eye diameter Weight Product sheet
F01S 2,8 l 370 mm 130 mm 18 mm 0,62 kg PDF
F01M 4,0 l 465 mm 130 mm 18 mm 0,68 kg PDF
F01L 5,3 l 560 mm 130 mm 18 mm 0,75 kg PDF

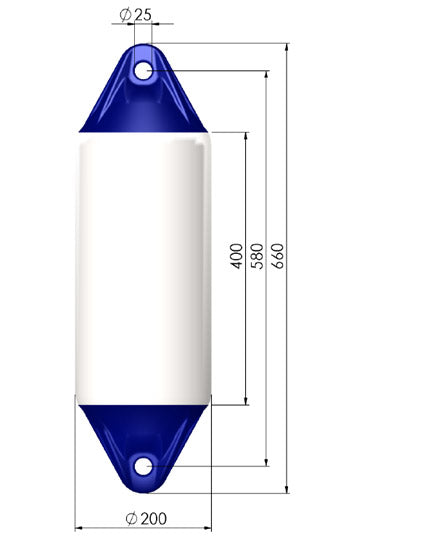

F02 15 l 660 mm 200 mm 25 mm 1,65 kg PDF

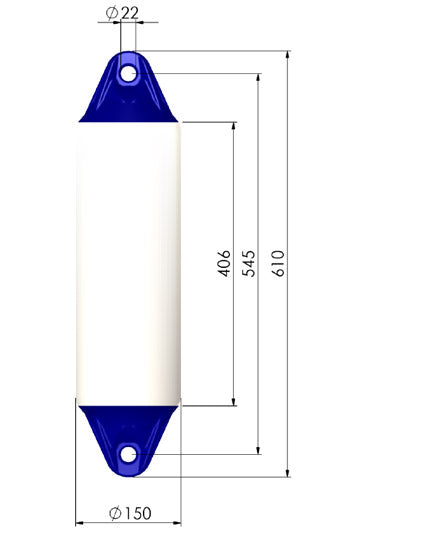

F1 8 l 610 mm 150 mm 22 mm 1,00 kg PDF
F2 16 l 610 mm 220 mm 28 mm 1,75 kg PDF

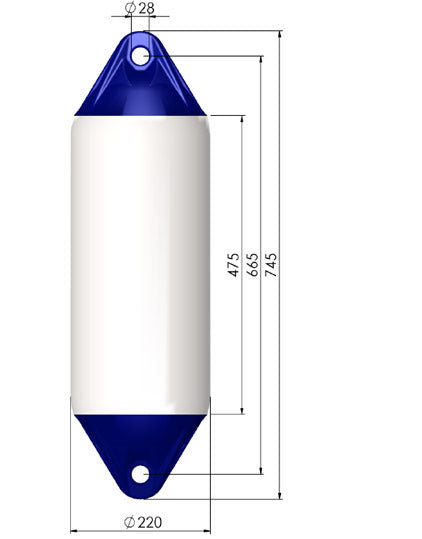

F3 22 l 745 mm 220 mm 28 mm 2,10 kg PDF

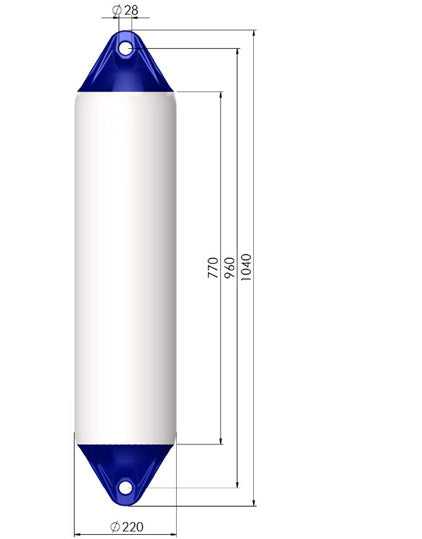

F4 35 l 1040 mm 220 mm 28 mm 2,90 kg PDF
F5 35 l 775 mm 290 mm 28 mm 3,00 kg PDF

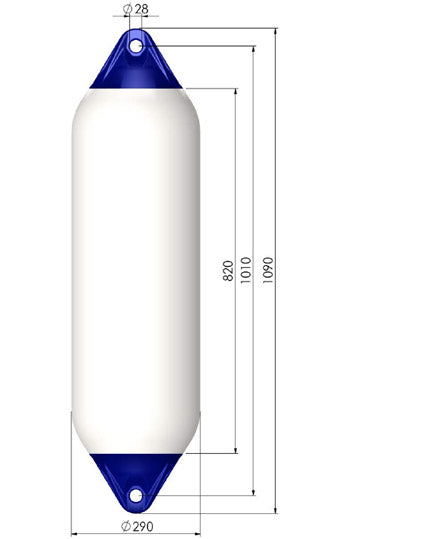

F6 60 l 1090 mm 290 mm 28 mm 4,20 kg PDF
F7 85 l 1020 mm 375 mm 28 mm 5,30 kg PDF

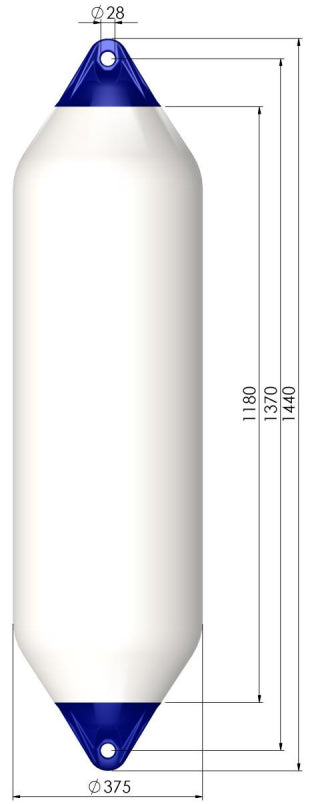

F8 135 l 1440 mm 375 mm 28 mm 7,60 kg PDF
F11 275 l 1455 mm 590 mm 28 mm 10,50 kg PDF
F13 700 l 1880 mm 750 mm 40 mm 23,00 kg PDF
