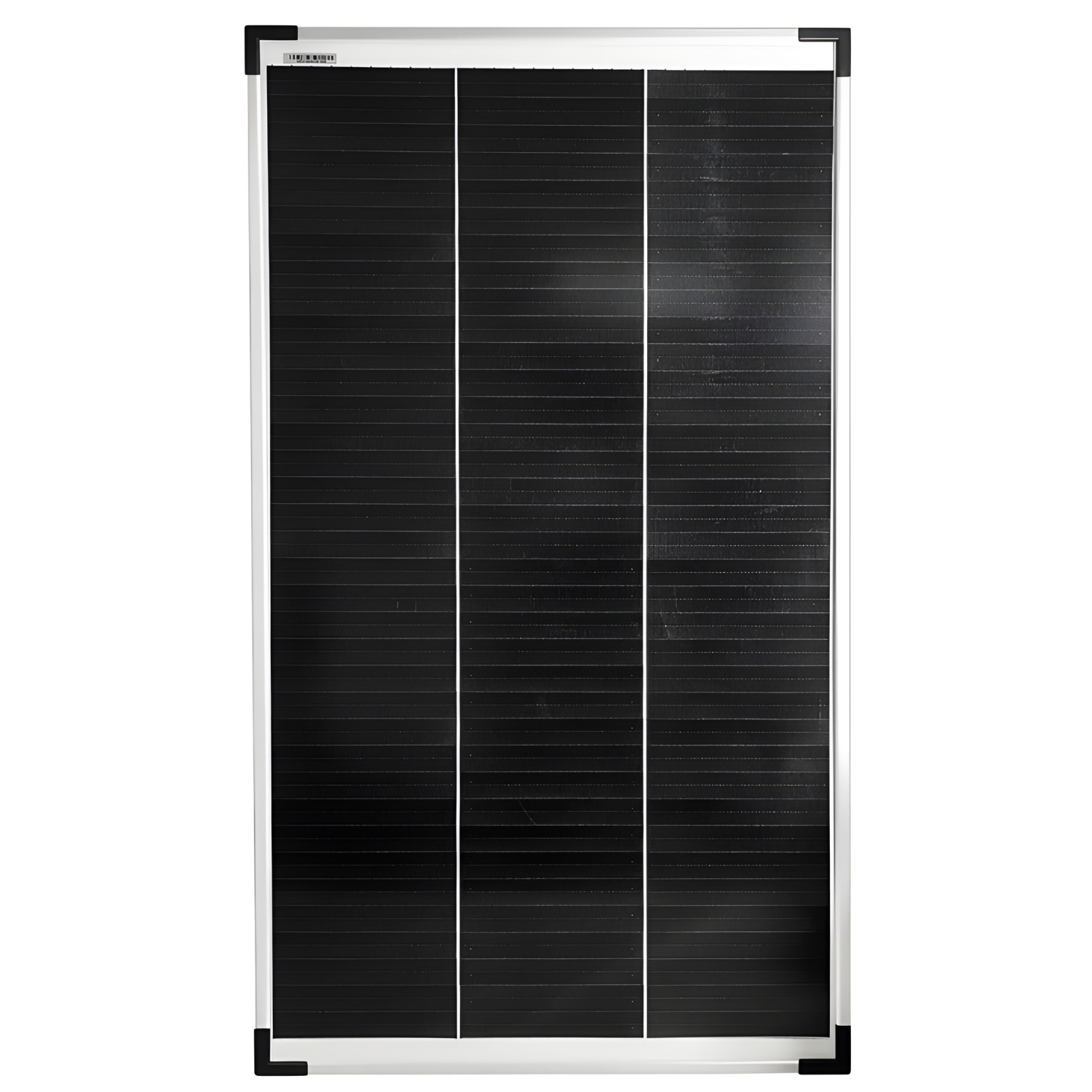

Perc Mono 100W Solar Panel

 PERC MONO CELL is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density modules are very robust and suited to mobile vehicles including Caravan, RV and Boating. The 35mm frame gives the panels additional strength in mobile application.

Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

Specifications
Maximum Power (Pmax)     100W
Voltage (Vmp)     18.5V
Current (Imp)     5.4A
Voltage (Voc)     21.6V
Current (Isc)     5.78A
Module Efficiency     19.84%
Cell Type     MONO PERC
Cable     4mm (Cross Sectional)

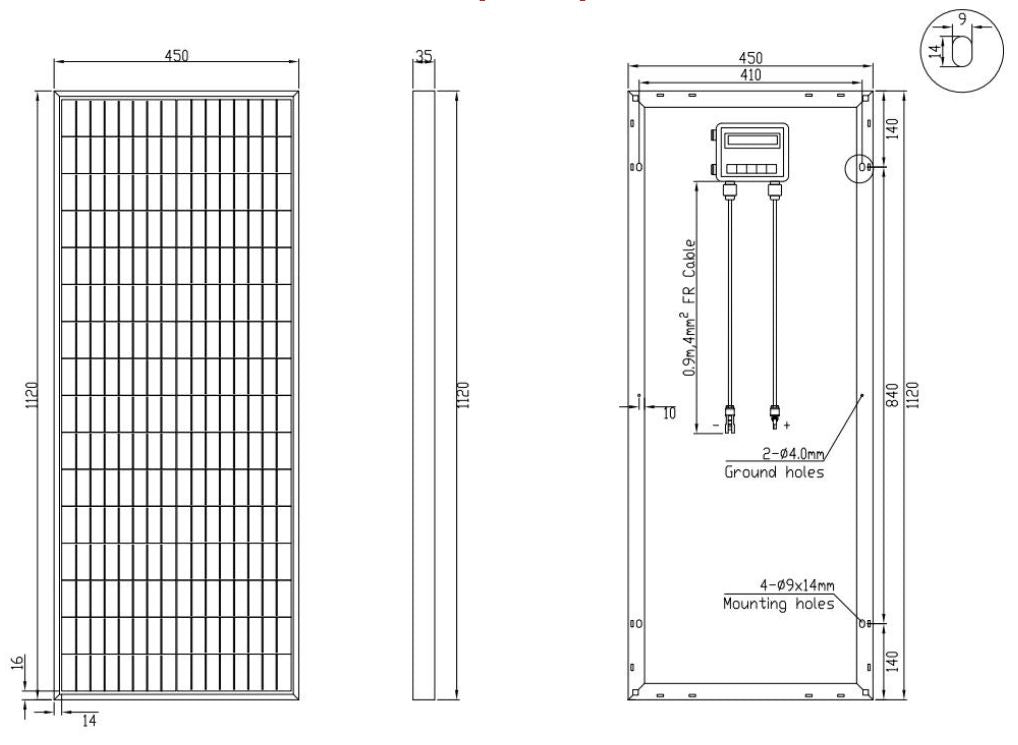

Module Dimensions (mm)     450 x 1126 x 35
Weight (kg) 6.3

Features

    PERC Solar cells with Shingle Technology

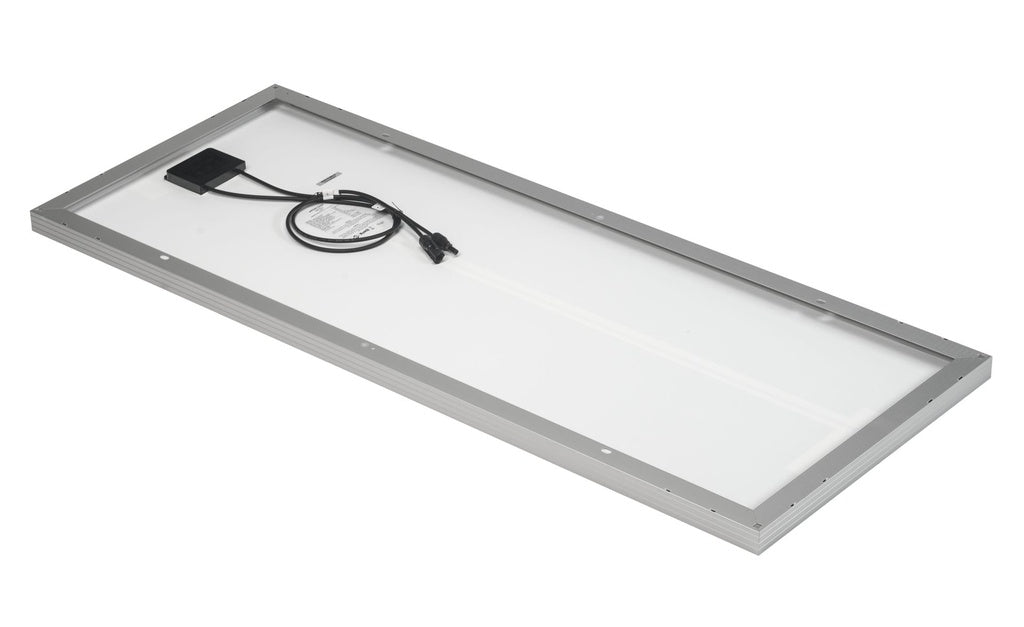

    Reinforced frame with aluminum angle
    35mm Frame with a support surface of 1.2mm thickness
    4mm2 Twin Red / Black Cable to MC4 from Diode Box

Advantages

    More Power : Reduced optical and electrical losses.  Shadowing also has less effect due to PERC Shingled Cell design.
    Compact : High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
    Reduced system cost : High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
    Stability : Enhanced reliability and stability. Significantly reduces hot spot effect.
    Reliability : Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.
    Performance : 10 year product warranty on materials and workmanship, 25 years linear power output warranty.
