NZ MC4 Solar Connector (Pair)

MC4 Connectors:

1. Purpose:

   • Designed to connect solar panels in series or parallel in solar arrays.

   • Allow for quick, secure, and weatherproof connections between solar modules.

2. Design:

   • Male and female halves that click together with a locking mechanism.

   • Typically require a tool to disconnect, preventing accidental separation.

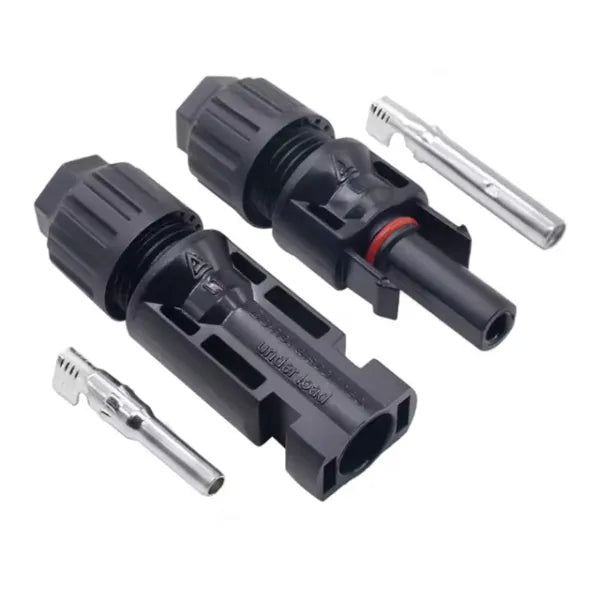

   • Use a crimped metal contact pin to ensure low resistance and reliable current flow.

3. Weather Resistance:

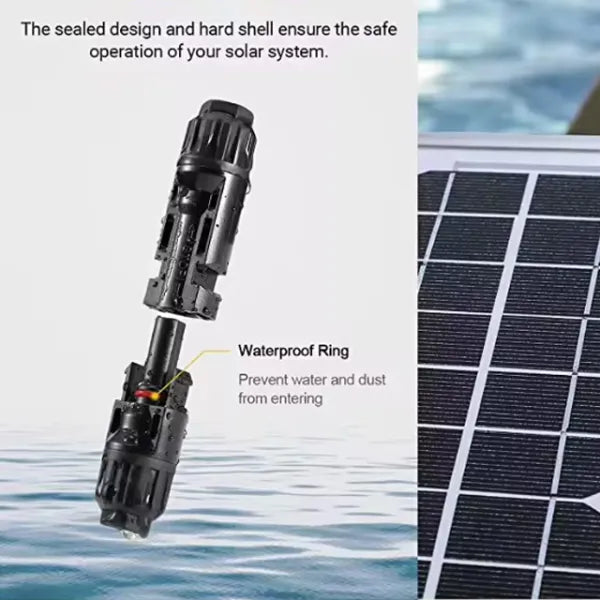

   • Rated IP67 (when mated), providing protection against dust and water.

   • Built to withstand UV exposure and extreme temperatures, making them ideal for outdoor use.

4. Current and Voltage Ratings:

   • Rated up to 30A current and 1000V DC depending on the model and standards.

5. Standardisation:

   • Ensure safe and standardized wiring of solar panels across manufacturers.

6. Installation:

   • Cables are crimped and inserted into the connector body.

   • MC4 crimping tools and wrenches are used for proper assembly and disassembly.

Advantages:

• Plug-and-play installation

• Reliable and durable

• Reduces risk of loose or faulty connections

• Supports high-voltage systems
