Jabsco Pump Cylinder Body (Incl Top & Bottom Valves)

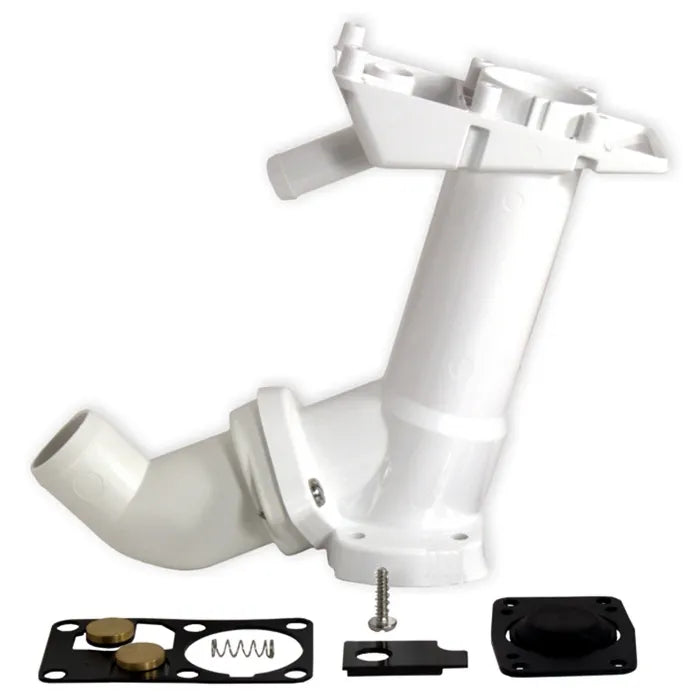

This is the replacement pump cylinder assembly for Jabsco manual marine toilets. This assembly includes the cylinder, the top valve (valve cover assembly), and the bottom valve (base valve assembly), simplifying the repair process

Like other Jabsco manual toilet components, the specific part number depends on the toilet's model year.

For models 2008 and onwards

Part number: 29051-3000 (supersedes 29051-2000 and 29051-0000)
Features: Compatible with the latest "Twist 'n' Lock" toilets featuring a white pump handle and a blue sticker.

For older models

Part number: 29051-2000 (1998–2007, superseded), 29051-0000 (pre-1998, superseded)
Features: Early models used different part numbers, but the 29051-3000 is often backward compatible with all Jabsco manual toilets from 1986 onwards.
Alternative: The components for older toilets are often bundled into complete service kits (e.g., 29045-2000) or require individual valve purchases.
