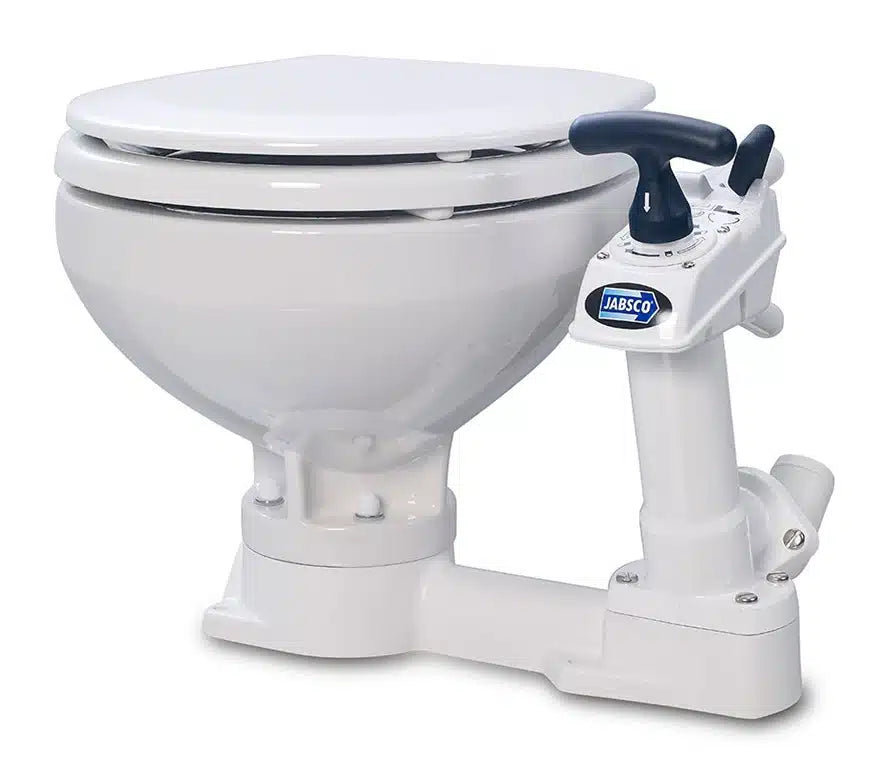

Jabsco Manual Compact Toilet

Twist 'n' Lock safety handle and flush control lever.

Powerful swirl action for efficient flushing.

Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.

Powerful self-priming pump for above or below waterline installation.

Crevice free contours and smooth mouldings for added hygiene.

Automatic vacuum breaker for easier pumping.

Angled pump housing and long stroke for more comfortable operation.

Features:

Twist 'n' Lock safety handle and flush control lever
Powerful swirl action for efficient flushing
Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder
Powerful Self-priming pump for above or below waterline installation
Crevice free contours and smooth mouldings for added hygiene
Automatic vacuum breaker for easier pumping
Angled pump housing and long stroke for ease of installation


Specifications:

Nett Weight: 9.5 kg 20½ lb
Connections: - for 19mm (¾”) bore inlet hose, 38mm (1½”) bore discharge hose
Dimensions: - 450mm wide, 410mm deep, 340mm high (compare with regular size bowl model)


Materials:

Stylised luxury wooden seat and cover with tough baked enamel coating.; Hygienic pure white vitreous china bowl for ease of cleaning.Reversible pump mounting for choice of right or left handled installation.

Detailed Information:

Twist ‘n' lock action safety handle guards against flooding and waste backflow by locking the waste outlet valve shut
Reversible pump mounting allows re-assembly for left hand operation by installer
Powerful self-priming, double-acting piston pump
Strong swirl action for efficient flushing
Crevice free contours and skirted base for added cleanliness and hygiene
Contoured handle and conveniently positioned flush control lever for ease of use
Angled pump housing and long stroke for easier pumping
Spring assisted top valve closure for easier priming
Automatic vacuum breaker operated by flush control lever for easier bowl emptying
Constant 38mm (11/2") bore waste path minimises blockages
Aortic joker valve combines full 38mm (11/2") bore with automatic backflow prevention
Multi-angle discharge elbow for ease of installation
Accessible mounting points for faster installation
All fastenings face front or top for superbly simple servicing without need for special tools
Renewable external seal housing for quick, clean replacement of seal and piston rod guide
Positively located gaskets ensure correct re-assembly
Dual function base plug combines winter drain point with easy cleaning access
