Isotherm Compact Classic 170L Refrigeration Kitset

Need a robust and adaptable cooling solution for your marine or off-grid setup? The Isotherm Compact Classic 2012 is a high-capacity refrigeration kit designed for larger spaces—perfect for boats, campervans, and tiny homes where performance and reliability are essential.

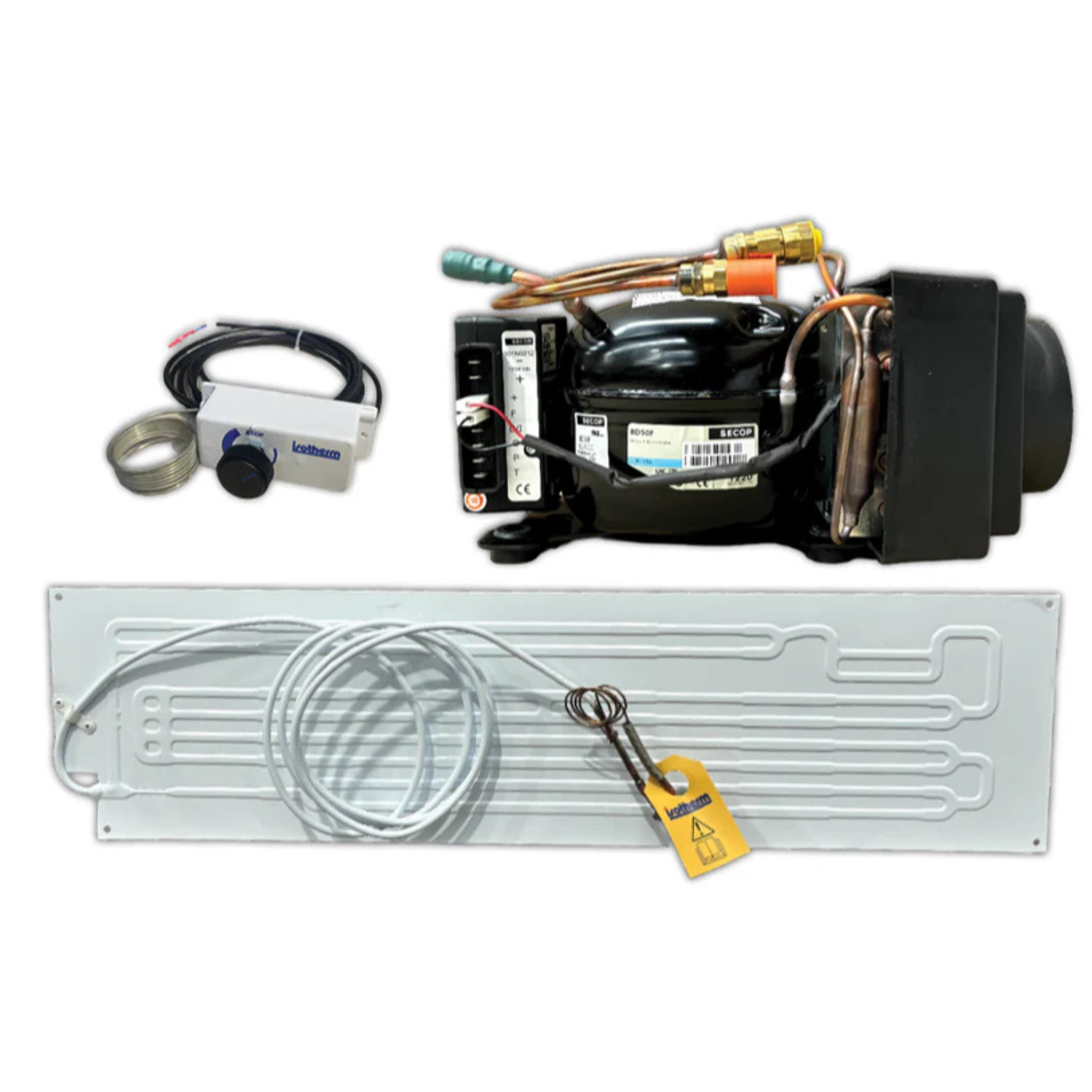

This 12/24V air-cooled system features the powerful Secop BD50F compressor, paired with a medium-sized flat evaporator that can be gently shaped to fit your box layout. It's designed to refrigerate spaces up to 170 litres or freeze up to 55 litres, making it ideal for converting existing insulated boxes or building new fridge/freezer compartments.

Installation is straightforward thanks to the quick-connect couplings and a 2.5-metre flexible pipe—no refrigerant handling required. The compressor comes with a built-in ventilation fan, ensuring efficient heat dispersion.

Key Features
DIY-Friendly: Quick-connect system allows for easy installation and maintenance.
12/24V DC Operation: Designed for off-grid and marine applications.
Flexible Evaporator: Medium flat evaporator can be gently shaped to fit your box layout.
Integrated Fan: Air-cooled system with built-in fan for efficient heat dispersion.
Mechanical Thermostat: Includes an ON/OFF switch for easy temperature control.
Specifications
Voltage: 12/24V DC
Max. Fridge Capacity: 170 litres
Max. Freezer Capacity: 55 litres
Compressor Type: Secop BD50F
Power Draw MAX: 5.2-amp hr @ 12vdc
Power consumption: operating as a fridge around .9-amp hr @ 12vdc
Compressor Dimensions (L x W x H): 295 x 160 x 155 mm
Evaporator Dimensions (L x W): 815 x 210 mm
Weight: Approximately 14 kg
Cooling Method: Air-cooled
Refrigerant: R134a – ozone friendly
Whether you're upgrading your current setup or installing from scratch, the Isotherm Compact Classic 2012 offers reliable cooling in a user-friendly package—perfect for your next adventure.
