Isotherm Compact Classic 100L Refridgeration Kitset

The Isotherm Compact Classic 2007 is a versatile refrigeration system designed for boats, caravans, and tiny off-grid spaces. This air-cooled unit efficiently cools insulated compartments up to 100 litres as a fridge. It's the perfect solution for converting an existing ice box or creating a custom refrigeration space.

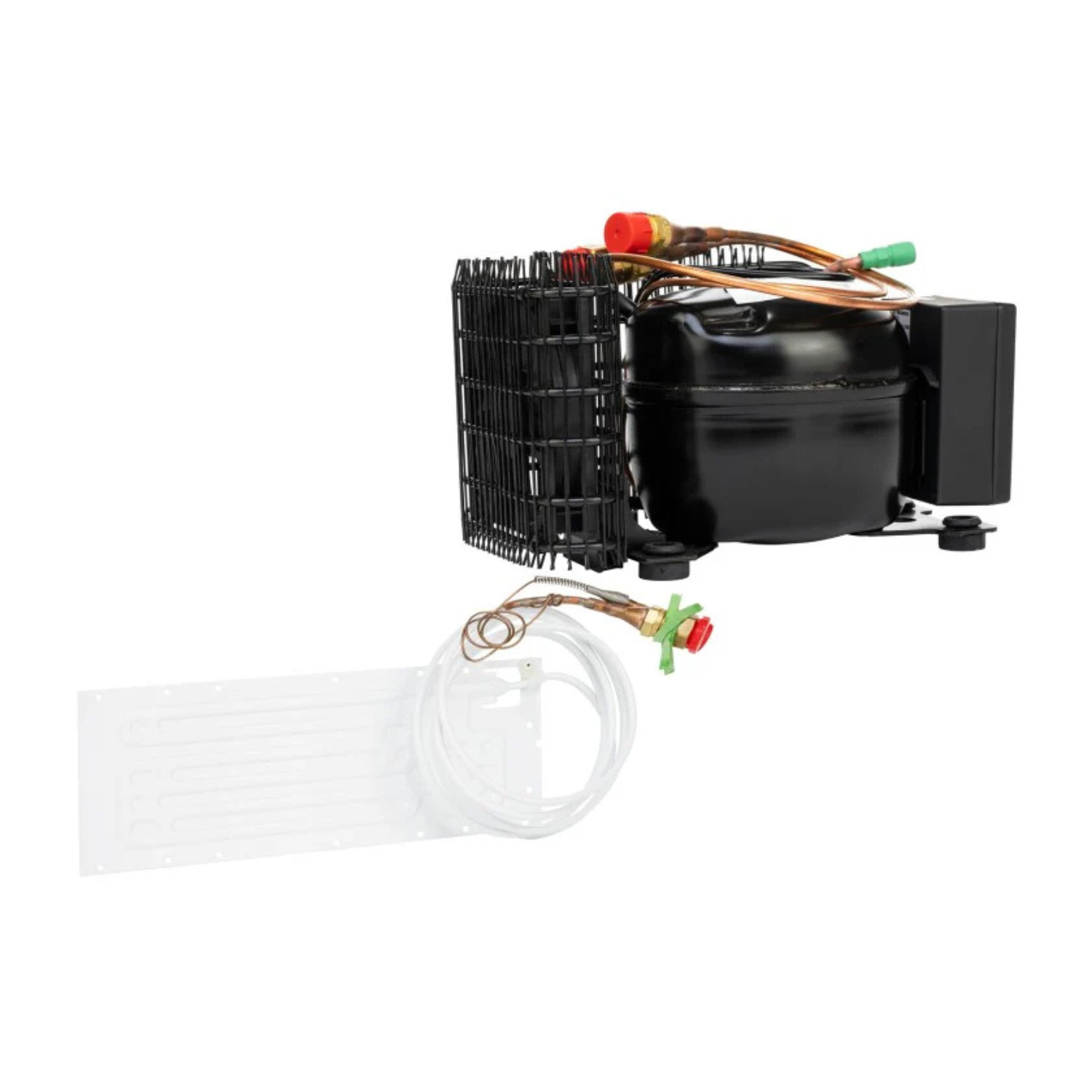

Designed for DIY installation, the system comes in two parts – a compact compressor/condenser unit and a Small-L evaporator. These connect via a 2.5 metre pre-charged pipe with quick-connect couplings, making setup simple with minimal refrigerant loss.

Key Features:

Cooling capacity: Up to 100L as a fridge
Evaporator type: Small-L shape – can be flexed to fit
Air-cooled Danfoss BD35F compressor for quiet, energy-efficient operation
12/24V DC compatible – ideal for marine and off-grid setups
Optional upgrades for 115/230v

Quick-connect installation – no special tools or re-gassing needed
Thermostat control box – adjustable and mountable inside or outside the fridge
Mounting bracket included for easy fitting
Evaporator dimensions (mm): 250W x 110H x 350D
Compressor dimensions (mm): 280W x 160H x 175D
Weight: Approx. 9kg
Average power use: 0.6A/hr @ 12V
Maximum power draw: 2.5A hr @ 12V
Refrigerant: R134a (ozone-friendly)
Compressor: Danfoss BD35F
U100X000L11111AA
(ALL PLATES CAN BE FOLDED TO FIT SHAPE OF BOX)
Installation Notes:

Best installed in a well-insulated compartment (minimum 50mm insulation recommended)
Ensure the compressor has good airflow – cool air should enter from below and warm air must be able to escape
Top-opening boxes retain cold better and reduce strain on the system
Door seals must be tight to prevent icing on the evaporator
The Isotherm Compact Classic 2007 offers a reliable, quiet, and space-saving solution for custom refrigeration needs on the water or the road. Built to perform and easy to install – a trusted choice from Isotherm.
