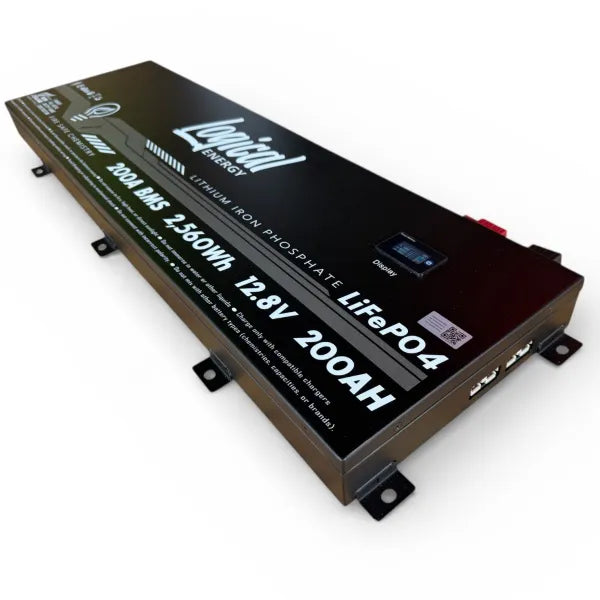

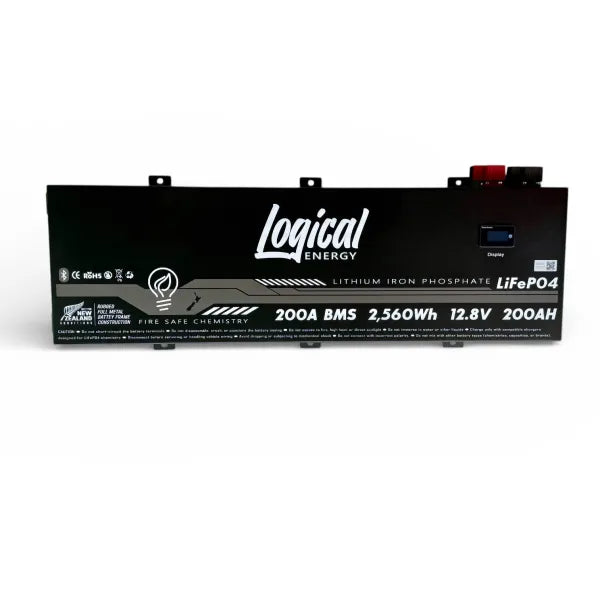

Slimline LiFePO4 Lithium Battery 200AH, 900 x 63mm

Ultra Slimline 200Ah 12.8V LiFePO4 Battery – Maximum Power, Minimal Space

When space is at a premium, the Ultra-Slimline Lithium Battery delivers serious power in an exceptionally slim form factor. Perfect for the back of a ute, behind seats, in canopies, toolboxes, or anywhere space is limited, this battery can be installed flat or upright to suit your setup.

Built into a high-quality full metal enclosure with reinforced angle brackets on the top and bottom edges, this battery offers flexible mounting options and rugged durability for New Zealand conditions. Heavy-duty 200A M8 terminals and dual 50A Anderson connectors provide multiple connection options for inverters, chargers, and auxiliary loads.

Inside, it’s built with 100% new A+ grade LiFePO₄ cells and protected by an advanced JBD Battery Management System, ensuring excellent cell balance, safety, and long-term reliability. Integrated low-temperature charging protection, Bluetooth monitoring, and an on-board LCD display give you complete visibility and confidence in everyday use.

Key Features

• Ultra-slim design – ideal for tight installations

• Install flat or upright for maximum flexibility

• Full metal enclosure with reinforced mounting brackets

• Premium A+ grade LiFePO4 cells

• JBD smart BMS for protection and cell balancing

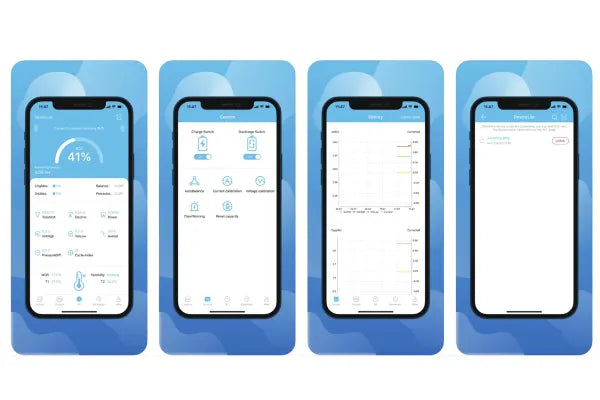

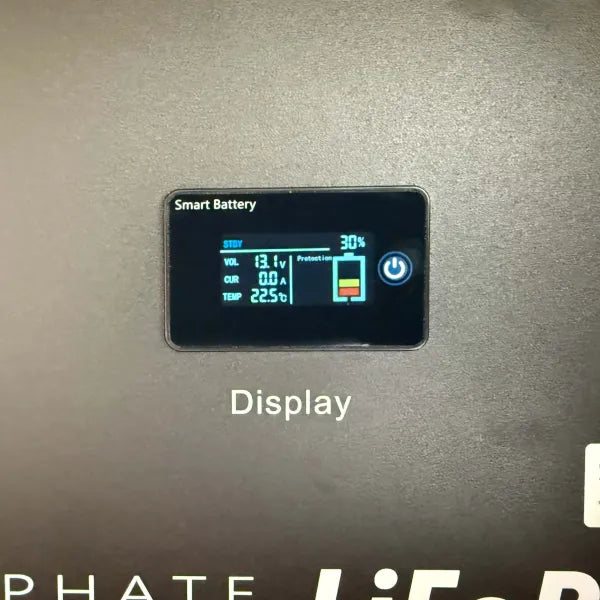

• Built-in Bluetooth + LCD display

• Multiple high-current connection options

• Long service life with strong warranty backing

Technical Specifications

Capacity: 200+ Ah (2560Wh minimum)
Nominal Voltage: 12.8V
Battery Chemistry: LiFePO4
Bluetooth Monitoring: Yes
LCD Display: Yes

BMS Manufacturer: JBD
Cell Grade: 100% New A+ Grade Prismatic cells

Low Voltage Cut-Off: 10V
High Voltage Cut-Off: 14.6V
Low Temperature Cut-Off: Yes (0°C)

Standard Charge Current: 100A
Maximum Charge Current: 200A

Standard Continuous Discharge: 100A
Maximum Continuous Discharge: 200A
Peak Discharge: 400A (3 seconds)

Waterproof Rating: IP20
Connection Options: Up to 4 in Series or 4 in Parallel

Dimensions: 900mm (L) × 275mm (H) × 65mm (Thickness)
Weight: 25.5kg
