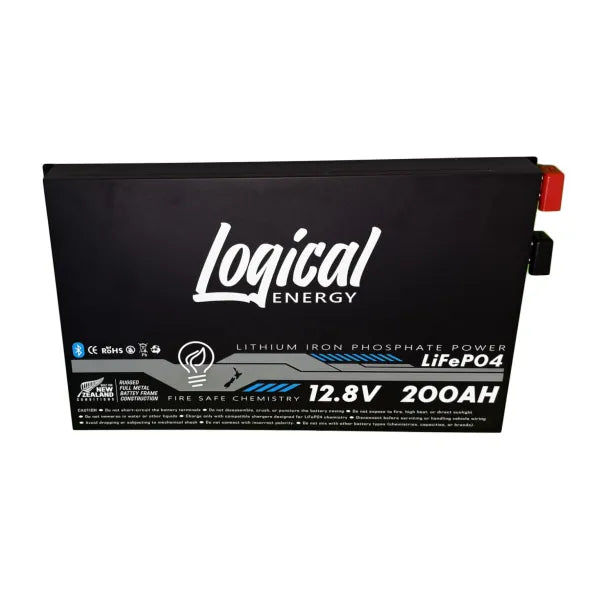

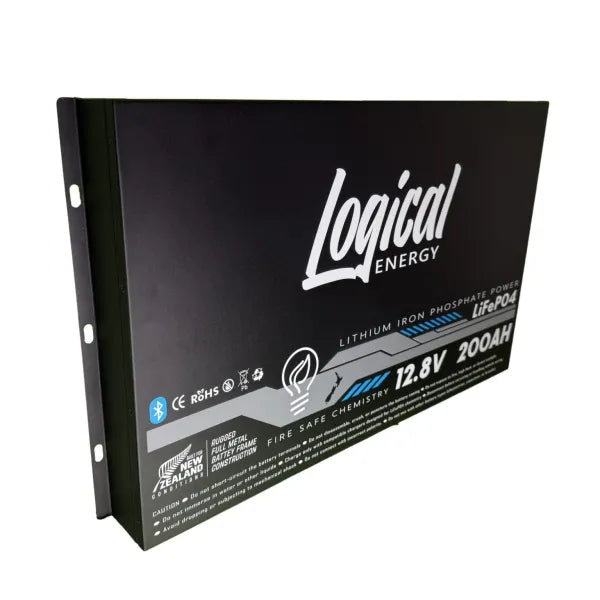

Slimline LiFePO4 Lithium Battery 200AH 650 x 65mm

Ultra-Slim 200Ah 12.8V LiFePO₄ Battery – Big Power Where Space Is Tight

When space is limited but performance can’t be compromised, the Ultra-Slim Lithium Battery is the smart solution. Designed specifically for utes, vans, behind-seat installs, toolboxes, and tight compartments, this ultra-thin lithium battery delivers serious power in a remarkably slim form factor.

Housed in a high-quality full metal enclosure, this battery is built to handle New Zealand’s demanding conditions. Reinforced angle brackets on the top and bottom edges allow flexible mounting in virtually any orientation, making installation easy even in unconventional spaces.

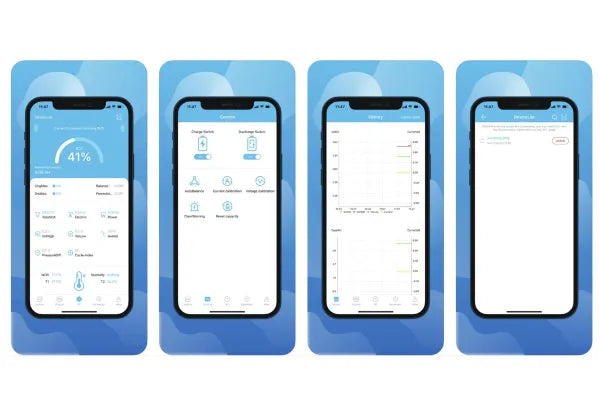

Built using 100% new A+ grade LiFePO₄ cells and protected by an advanced JBD Battery Management System, this battery delivers exceptional safety, precise cell balancing, and long-term reliability. Integrated low-temperature charge protection and a free Bluetooth monitoring app ensure safe operation and full visibility of battery health at all times.

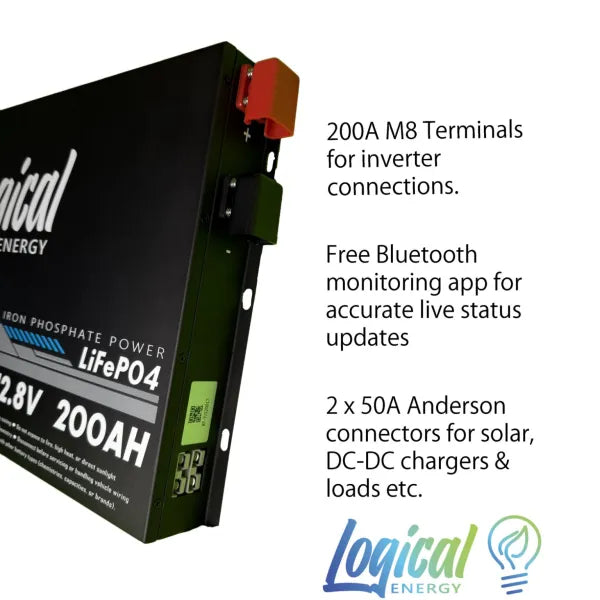

With a 200A M8 main terminal and dual 50A Anderson connectors, this unit offers multiple connection options for inverters, chargers, and auxiliary loads—ideal for touring, work vehicles, and off-grid setups.

Technical Specifications

Capacity: 200+ Ah
Nominal Voltage: 12.8V
Battery Chemistry: LiFePO₄
Bluetooth Monitoring: Yes (Free App)

Cell Grade: 100% New A+ Grade
BMS Manufacturer: JBD

Low Voltage Cut-Off: 10V
High Voltage Cut-Off: 14.6V
Low Temperature Cut-Off: Yes (0°C) cell temp

Standard Charge Current: 100A
Maximum Charge Current: 200A

Standard Continuous Discharge: 100A
Maximum Continuous Discharge: 200A
Peak Discharge: 400A (3 seconds)

Main Terminals: 200A M8
Auxiliary Connections: 2 × 50A Anderson connectors

Waterproof Rating: IP20
Connection Options: Up to 4 Series or 4 Parallel

Dimensions: 650mm (L) × 430mm (H) × 35mm (Thickness)
Weight: 26.5kg
