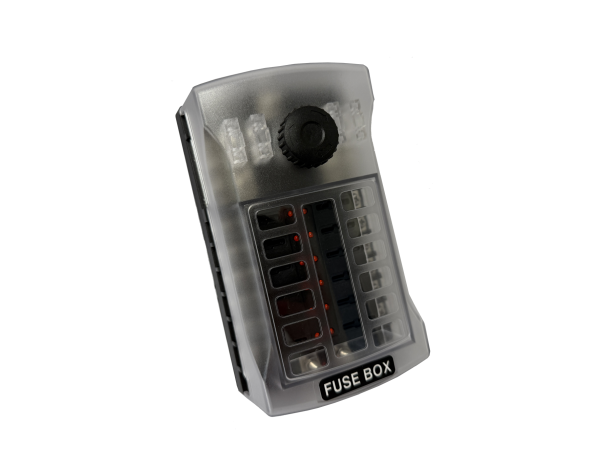

12V – 36V 300Amp Fuse Board & Fuses

12-Way Fuse Block with Bus Bar, a versatile solution for efficient power distribution.
Can be very handy in your boat or caravan, especially when a chassis-ground system isn’t in place. Each of the twelve fuse outputs can handle up to 30 amps, providing a total combined capacity of 300 amps, with the added convenience of a blown fuse indicator via red LEDs. 5-30A fuses are included.

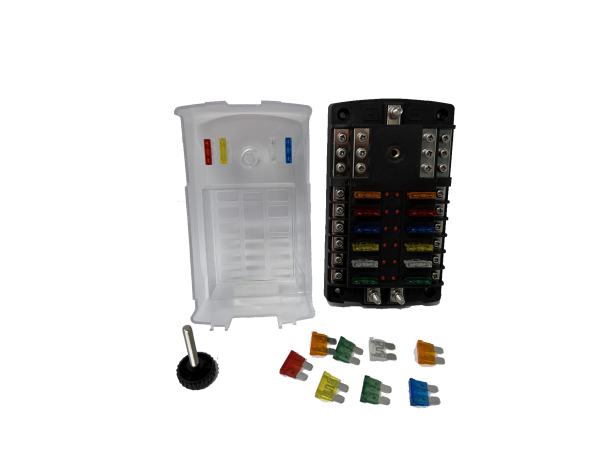

This compact unit securely holds up to twelve standard blade fuses; each rated at 30 amps. The negative bus bar simplifies wiring.
The 12-Way Fuse Block is the ideal choice for organized and reliable power distribution from your positive terminal, with dimensions of 138(h)x85(w)x37(d).

• Up to 30A per output
• Red LED blown fuse indicator
• Negative bus bar
• Dimensions: 138(h) x 85(w) x 37(d) mm
• Fuse type: Blade
• Main Input line:
• Terminal rating: M5 threaded studs (32vDC, 100A maximum)
• Wire size: 4-6 AWG
• Single Output Line:
• Terminal rating: M4 threaded studs (32VDC, 30A maximum)
• Wire size: 12-16 AWG
• Terminals: Nickel plated copper
• Screws: Stainless steel
• Weight: 180 grams
