12V – 36V 100Amp 6 way Fuse Board & Fuses
SKU: ELEC-FUSE-BRD-6WAY-100A-1236
- Regular price
- $29.99
- Sale price
- $29.99
- Regular price
-
- Unit price
- / per
- 12V
- 24V
- 4x4
- Accessories
- Boats
- Caravan
- Electrical
- Fuse
- Lithium
- Solar
- Yachts

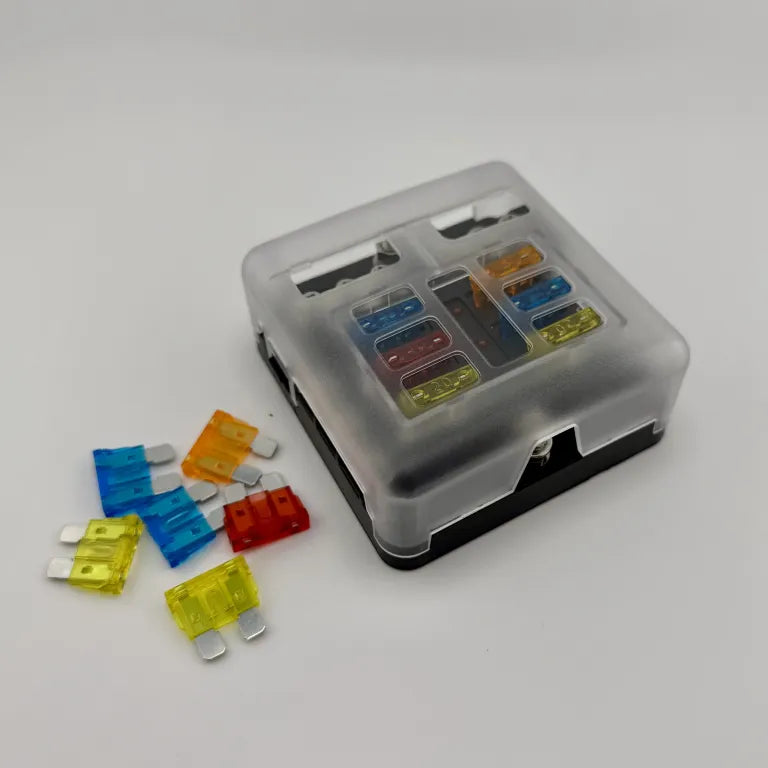

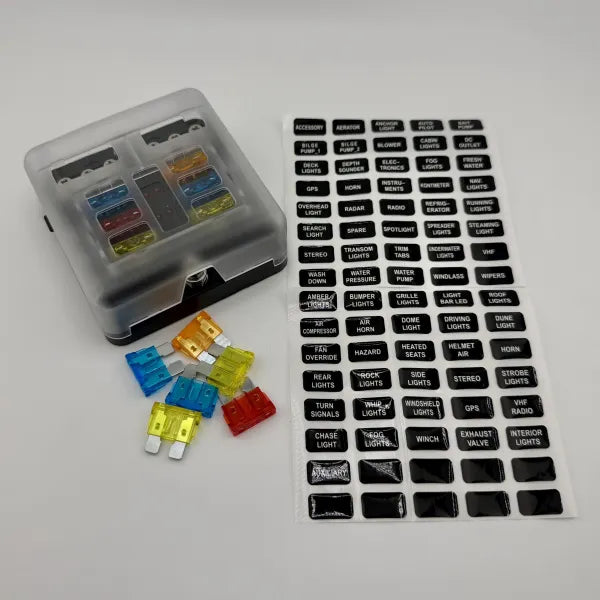

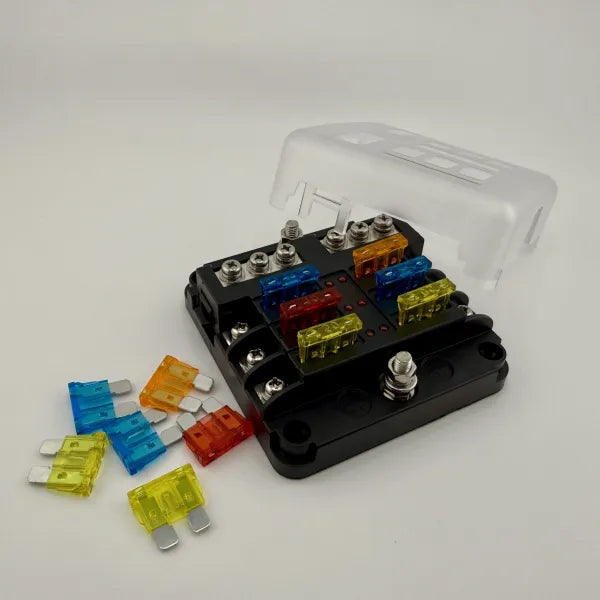

12V – 36V 100Amp 6 way Fuse Board

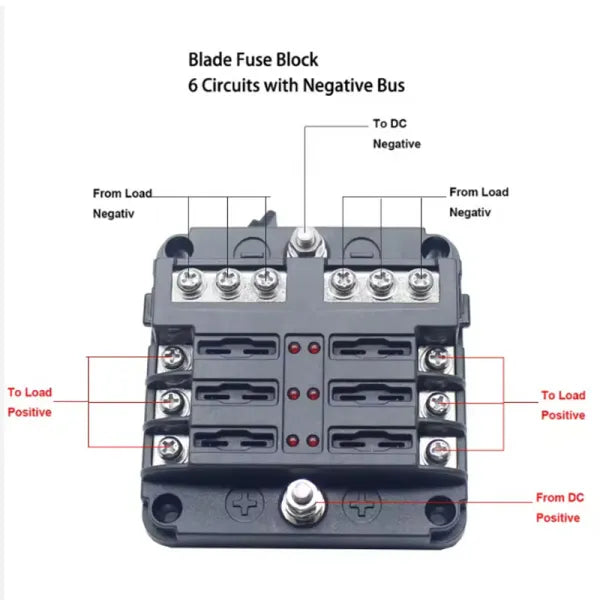

6-Way Fuse Block with Bus Bar, a versatile solution for efficient power distribution.
Can be very handy in your boat or caravan, especially when a chassis-ground system isn’t in place. Each of the twelve fuse outputs can handle up to 30 amps, providing a total combined capacity of 100 amps, with the added convenience of a blown fuse indicator via red LEDs. 5-30A fuses are included.
This compact unit securely holds up to twelve standard blade fuses, each rated at 30 amps. The negative bus bar simplifies wiring.
The 12-Way Fuse Block is the ideal choice for organized and reliable power distribution from your positive terminal, with dimensions of 138(h)x85(w)x37(d).
- Up to 30A per output
- Red LED blown fuse indicator
- Negative bus bar

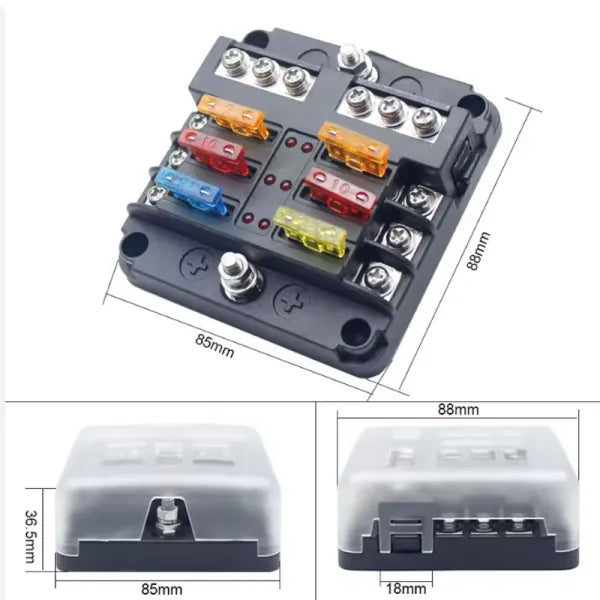

- Dimensions: 88(h )x 85(w) x 36(d) mm
- Fuse type: Blade
- Main Input line:
- Terminal rating: M5 threaded studs (32vDC, 100A maximum)
- Single Output Line:
- Terminal rating: M4 threaded studs (32VDC, 30A maximum)
- Wire size: 12-16 AWG
- Terminals: Nickel plated copper
- Screws: Stainless steel
- Weight: 150 grams
